12V 7Ah LiFePO4 Battery – Compact Lithium Replacement for Fish Finders, UPS, Security Systems and Outdoor Electronics

---

12V 7Ah LiFePO4 Battery for Compact Deep Cycle Power

This 12.8V 7Ah LiFePO4 battery is a compact, rechargeable lithium iron phosphate battery built for 12V systems that need lighter weight, longer cycle life, and stable voltage output. It is physically smaller and lighter than most sealed lead acid batteries of the same rated capacity.

The battery holds close to its nominal voltage through most of the discharge cycle. That means whatever it powers runs at consistent performance—not degrading output as the battery approaches empty the way SLA batteries often do.

This small 12V lithium battery covers a wide range of practical applications: fish finders, portable sonar units, alarm systems, security panels, gate openers, camping lights, emergency lighting, and small backup power devices. It is also a recognized replacement option for UB1280-style sealed lead acid batteries in systems where the voltage range, terminal type, discharge current, and charger profile are compatible.

If you are currently running a 12V 7Ah sealed lead acid battery and want less weight, longer service life, and zero maintenance, this compact LiFePO4 battery is the right type to evaluate. Confirm charger and system compatibility before installation—the sections below walk through that in detail.

---

Lightweight 12V Lithium Battery with Long Cycle Life

The key advantages of this battery over traditional sealed lead acid are practical and measurable. This is not about buzzwords—it is about what changes when you make the switch.

• Compact form factor. This compact 12V lithium battery fits into tight enclosures and portable power setups where a heavier SLA battery would be impractical or overly bulky.
• Significantly lighter. A lightweight 12V lithium battery of this size weighs considerably less than a traditional sealed lead acid battery at the same 7Ah capacity. That weight difference is meaningful on a kayak, inside a carry bag, or in a portable power box.
• Built for deep cycle use. This 7Ah deep cycle lithium battery is designed for repeated charge and discharge cycles. Cycle life under normal operating conditions is substantially higher than SLA chemistry.
• Flat discharge curve. Voltage stays near nominal through most of the discharge. Devices see consistent power rather than progressively dropping voltage late in a run.
• No maintenance required. This maintenance free lithium battery has no electrolyte to check, no terminals corroded by acid, and no water to add. It requires no scheduled service.
• Lighter load for portable setups. For any application where you carry the battery—fishing trips, field work, camping—this portable power battery reduces the load without sacrificing usable runtime.
• No acid, no lead. LiFePO4 chemistry does not contain lead or sulfuric acid. It is more thermally stable than many other lithium chemistries.

---

UB1280 Replacement Battery and Sealed Lead Acid Replacement Battery

Many buyers search for a replacement using the model number printed on their old battery. The UB1280 is a widely used 12V 7Ah sealed lead acid format found in alarm panels, UPS systems, gate openers, fish finders, and similar equipment. This 12V 7Ah lithium battery can function as a UB1280 replacement battery in many of these applications—but compatibility is not guaranteed for every system.

Physical fit

This is a 6.35mm F2 terminal battery. That matches the standard terminal used on most 12V 7Ah SLA batteries, including the UB1280. Confirm that the replacement battery’s physical dimensions fit the original compartment before purchasing.

Charger compatibility

The most important compatibility check. A sealed lead acid replacement battery swap only works cleanly if the charging system supports LiFePO4 profiles. Standard lead-acid chargers use a different charge voltage and algorithm. Running this battery on a lead-acid only charger can reduce capacity, shorten life, or damage the cells. The recommended charging voltage for this battery is 14.4V using a LiFePO4-compatible charger.

Device current requirements

Confirm the device’s maximum load current falls within the rated output of this battery. This is especially important for gate openers and UPS units that draw surge current during startup.

System charging behavior

Some UPS units and alarm systems use pulsed float charging, battery resistance testing, or compensation algorithms tied to lead-acid behavior. LiFePO4 batteries respond differently in these tests. Confirm your system supports a lightweight SLA alternative before installing.

When conditions are met, this battery is a solid drop-in replacement for sealed lead acid in weight-sensitive or longevity-critical applications. It is lighter, lasts longer, and needs no maintenance over its service life.

---

12V Fish Finder Battery for Kayak, Ice Fishing and Portable Marine Electronics

Fish finders and portable sonar units are one of the strongest use cases for this battery. These are low-current devices—most draw well under 1A in normal use—and a 7Ah capacity provides several hours of operation per charge. The weight savings over a comparable SLA battery are real and practical, especially for kayak anglers and ice fishing users who carry every pound of gear by hand.

Why this battery works for fishing applications:

• Kayak fish finder battery. Kayak anglers do not want unnecessary weight on the water. This lightweight battery for Garmin fish finder units, Humminbird portables, Lowrance Hook series, and similar low-draw electronics reduces total gear weight without cutting into runtime. It is a direct upgrade from the SLA battery in most portable fish finder kits.
• Ice fishing battery. Ice fishing users often haul gear across a frozen lake in a sled or a pack. A small, light battery fits better and weighs less. This 12V 7Ah battery for ice fishing fish finder setups is compact enough for most portable shelter carry bags.
• Portable depth finder battery. Most portable fish finders and sonar units draw 0.3A to 0.8A under normal operation. A fully charged 7Ah battery provides reliable runtime through a full day of fishing.
• Stable output for electronics. The flat discharge curve of LiFePO4 chemistry means the fish finder screen brightness and sonar performance stay consistent throughout the battery’s discharge—not just in the first hour.
• Small marine electronics. Other 12V accessories—portable GPS units, VHF handhelds with external power, small chartplotters—can also be powered from this battery in a portable setup.

This fish finder battery for kayak and ice fishing use is a practical upgrade from the heavy SLA batteries that most portable fish finder kits still ship with.

---

Reliable 12V Lithium Battery for Alarm Systems, Security Systems and Gate Openers

Alarm panels, home security systems, and residential gate openers almost universally use 12V 7Ah SLA batteries for backup power. In selected systems, this BMS protected LiFePO4 battery is a suitable replacement. The key word is “selected”—not every system is compatible, and checking before you buy is essential.

Potential applications in this category:

• Alarm system backup battery
• Home and commercial security system battery
• Residential and commercial gate opener battery
• Selected small UPS systems
• Selected APC UPS replacement battery projects

Compatibility note—read this before purchasing:

Many alarm panels, security systems, and UPS units are engineered around lead-acid chemistry. The onboard charger uses a float voltage designed for SLA. Installing this rechargeable 12V 7Ah battery in a system whose charger operates at a fixed lead-acid float voltage (typically 13.6V–13.8V) will result in the battery never reaching a proper full charge and potentially underperforming over time.

Before installing in any security or UPS application:

• Confirm the system’s charging voltage is compatible with a 14.4V LiFePO4 profile
• Confirm the charger does not use SLA-specific float, trickle, or repair modes
• Confirm the battery dimensions and F2 terminal positions fit the original bay
• For small UPS replacement battery or APC UPS replacement battery use, determine whether the UPS performs a battery impedance test at startup—this test may flag a lithium battery as failed or incompatible

When compatibility is confirmed, this battery is a lighter, longer-lasting, maintenance free alternative to the original sealed lead acid unit.

---

Compact Camping Battery for Portable Lighting and Outdoor Electronics

This small 12V lithium battery is a practical outdoor power source for camping setups, portable lighting, field instruments, and low-draw electronics. Its compact size and light weight make it easy to pack in a backpack, mount inside a small power box, or carry to a remote site.

Common outdoor and camping applications:

• Camping LED lights. A 12V 7Ah battery for portable lighting can run a 10W LED strip for several hours between charges. It recharges at home or from a compatible solar charge controller in the field.
• Portable 12V lighting kits. Portable lighting battery setups for outdoor worksites, campsites, or events benefit from the flat discharge curve. Lights hold consistent brightness through most of the discharge rather than dimming early.
• Outdoor electronics. Trail cameras, weather monitoring stations, outdoor radios, and portable instruments running at 12V can draw from this compact LiFePO4 battery in the field.
• Small power boxes. This lightweight 12V lithium battery is sized right for DIY 12V power boxes and small portable battery stations.
• Emergency lighting. This 12V 7Ah lithium battery for emergency lighting works in small LED emergency light fixtures when the device charger is LiFePO4 compatible.
• Field testing equipment. Engineers and technicians using portable instruments in the field get more consistent readings from a battery that holds voltage flat through most of its discharge.
• Ham radio and QRP portable operation. This 12V 7Ah battery for ham radio portable power is popular in the amateur radio community. It powers a 12V 7Ah battery for Yaesu 817 QRP radio and similar low-power rigs for extended field day or SOTA operations, where every gram of kit weight matters.

---

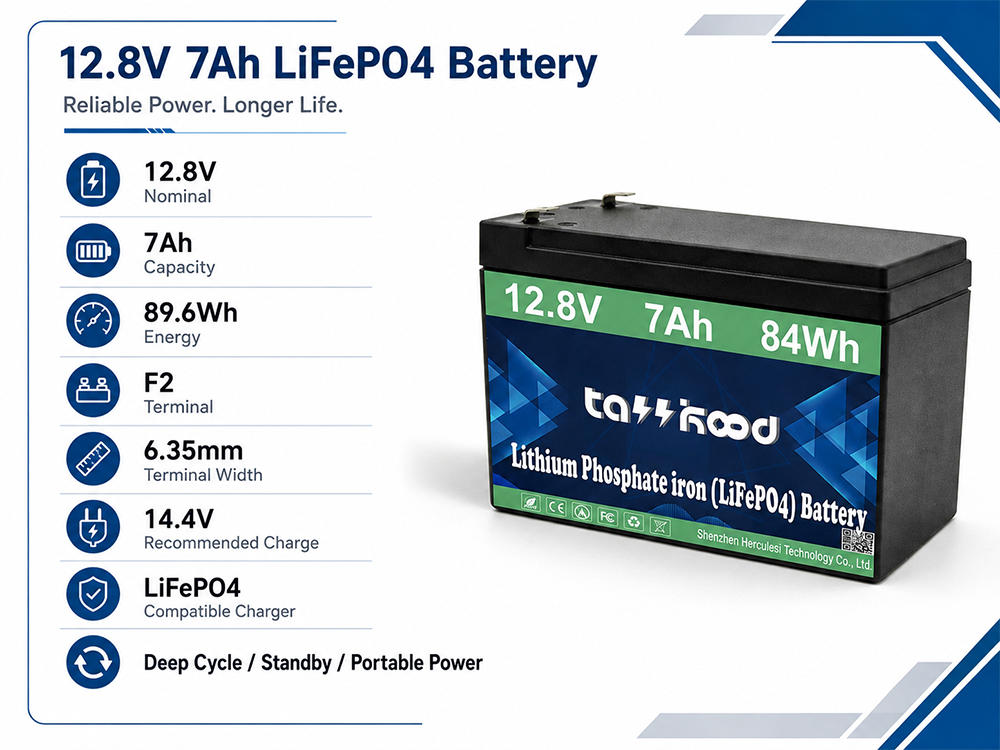

12.8V 7Ah LiFePO4 Battery Specifications

Item	Specification
Battery Type	LiFePO4 / Lithium Iron Phosphate
Nominal Voltage	12.8V
Rated Capacity	7Ah
Energy	About 89.6Wh
Terminal Type	F2 terminal
Terminal Width	6.35mm / 0.25 inch
Recommended Charging Voltage	14.4V
Charger Type	12V LiFePO4 compatible charger
Application Type	Deep cycle / standby / portable power
Replacement Type	Selected 12V 7Ah SLA / UB1280 replacement applications

Notes on these specifications:

The nominal voltage of this 12.8V 7Ah LiFePO4 battery is slightly different from the 12.0V nominal of a sealed lead acid battery. Most 12V devices tolerate this difference without issue. The resting voltage of a fully charged LiFePO4 pack is approximately 13.6V, compared to roughly 12.6V–12.7V for a fully charged SLA battery. Verify your device can handle the full LiFePO4 voltage range before installation.

The 6.35mm F2 terminal is the standard used on most 12V 7Ah SLA batteries, making physical connection straightforward in the majority of replacement scenarios.

---

BMS Protected LiFePO4 Battery for Safer 12V Power

This battery includes a built-in Battery Management System. The BMS monitors cell voltage, current, and temperature, and disconnects the circuit when operating conditions go outside safe limits. This is a standard and necessary feature in any quality lithium battery pack.

BMS protection functions:

• Overcharge protection (high voltage cutoff). The BMS stops charging when the pack voltage reaches the upper voltage limit. This prevents cell damage from sustained overcharging.
• Over-discharge protection (low voltage cutoff). The BMS disconnects discharge when the pack voltage drops below the lower voltage threshold. Deep discharge damage is a common failure mode in lithium cells without this protection.
• Short circuit protection. The BMS disconnects the output immediately if a short circuit is detected, limiting the risk of thermal damage to the battery or connected equipment.
• Over-current protection. If discharge current exceeds the rated maximum, the BMS cuts the circuit before the cells or terminals overheat.
• Cell balancing. The BMS maintains balanced voltage across individual cells in the pack. Cell imbalance builds up over many cycles and causes early capacity loss—balancing addresses that.
• High temperature protection. The BMS monitors internal temperature and can interrupt operation if the pack reaches an unsafe level.

Chemistry note:

LiFePO4 (lithium iron phosphate) is more thermally and chemically stable than lithium cobalt oxide (LiCoO2) or NMC chemistry. It does not contain lead or sulfuric acid. It is a non-toxic lithium iron phosphate battery relative to many conventional battery types.

Certification note: Any certifications relevant to this specific product (such as UN38.3, UL1642, IEC62133, or similar) should be confirmed directly with the manufacturer before listing them on product pages or data sheets. Do not assume certification status without verified documentation.

---

12V LiFePO4 Charger Compatible Battery with 14.4V Charging

Getting the charger right is the most common mistake when switching from sealed lead acid to LiFePO4. This battery requires a charger built for LiFePO4 chemistry. A standard lead-acid charger will not produce the right charge profile.

What to use:

• Use a 12V LiFePO4 compatible charger. A 12V 3A LiFePO4 charger is a common, practical choice for this battery size—it fully charges a depleted 7Ah pack in roughly 2.5 to 3 hours.
• Recommended charging voltage: 14.4V. A proper 14.4V LiFePO4 charging battery profile improves charge efficiency, usable capacity delivery, and long-term cycle life.
• Do not exceed the battery’s rated maximum charge current. Confirm the charger’s output current against the battery specification before use.

What to avoid:

• Lead-acid chargers with pulse repair, desulfation, AGM-specific, or GEL-specific modes—these apply voltage patterns that are not compatible with LiFePO4 cells and can damage them.
• Chargers that float indefinitely at 13.6V–13.8V (lead-acid float range)—LiFePO4 batteries do not require continuous float charging and sustained float at the wrong voltage stresses the cells over time.

Temperature:

• Do not charge this battery below 0°C (32°F) unless it is specifically rated for low-temperature charging with an internal heating system. Charging a lithium cell below freezing causes irreversible lithium plating inside the cell. This damage is cumulative and permanent.
• Most LiFePO4 batteries can discharge at temperatures below 0°C even when they cannot be safely charged there. Confirm your use case and environment before deployment.

Float and standby charging:

LiFePO4 batteries do not need continuous float charging the way SLA batteries do. Quality LiFePO4 chargers terminate at full charge and only resume when pack voltage drops to a preset threshold. This is the correct behavior. It is not a charger malfunction.

---

Better Alternative to Traditional 12V 7Ah Sealed Lead Acid Batteries

This is a factual comparison—not a sales pitch. SLA batteries are a mature, reliable technology. The question is whether the trade-offs of switching to LiFePO4 make sense for your application.

Feature	12V 7Ah LiFePO4 Battery	Traditional 12V 7Ah SLA Battery
Weight	Much lighter	Heavier for the same rated capacity
Cycle Life	Longer cycle life under normal use	Shorter cycle life
Usable Capacity	Stable usable power through most of discharge	Voltage drops faster under load
Maintenance	Maintenance free – no acid, no watering, no service	Sealed SLA requires no watering, but shorter replacement interval
Charging	Requires LiFePO4 charging profile (14.4V)	Standard lead-acid charging profile
Self-Discharge	Lower self-discharge rate when stored	Higher self-discharge rate over time
Cold Weather	Good discharge in cold; do not charge below 0°C	Loses capacity in freezing temps; can charge in cold
Chemistry	No lead, no acid; more thermally stable	Contains lead and sulfuric acid
Cost	Higher upfront cost	Lower upfront cost
Best Use	Portable power, fish finder, outdoor electronics, alarm, lighting	Low-cost standby power where charger compatibility is guaranteed

Honest summary:

If your existing system is optimized for SLA and you have no concerns about weight or replacement frequency, SLA is a reasonable choice. If you need a lighter battery, a longer-lasting deep cycle battery for portable applications, or want to reduce replacement labor over time, this 7Ah deep cycle lithium battery is the better long-term option. The main conditions are charger compatibility and correct sizing for your system’s current requirements.

---

Where Can This 12V 7Ah Lithium Battery Be Used?

This list covers typical applications where a 12V 7Ah deep cycle lithium battery is commonly used. Compatibility depends on each system’s specifications. Confirm before purchasing.

Fishing and Marine Electronics

• Fish finders (Garmin Striker, Humminbird Helix, Lowrance Hook, and similar portable units)
• Portable depth finders
• Kayak fish finder battery setups
• Ice fishing sonar and flasher units
• Other small 12V portable marine electronics

Backup and Security Power

• Alarm system backup battery
• Home and commercial security system battery
• Gate opener backup battery
• Selected small UPS systems
• Selected APC UPS replacement battery projects (confirm charger compatibility first)

Outdoor and Portable Power

• Camping LED lights and lanterns
• Portable 12V lighting systems
• Outdoor electronics and trail cameras
• Small 12V power boxes and DIY battery packs
• Emergency backup lighting fixtures
• Field measurement and testing instruments
• Ham radio and QRP portable operation

---

Check These Points Before Replacing Your 12V 7Ah SLA Battery

Working through this list before purchasing reduces the risk of a mismatched installation and a returned battery.

• [ ] Is your original battery rated 12V 7Ah?
• [ ] Does your device use F2 terminals?
• [ ] Is the terminal width 6.35mm (0.25 inch)?
• [ ] Does this battery’s physical size fit your device’s battery compartment?
• [ ] Is the device’s continuous current draw within this battery’s rated discharge output?
• [ ] Is your charger compatible with LiFePO4 chemistry?
• [ ] Does your system charge at approximately 14.4V?
• [ ] If you are replacing a battery in a UPS, alarm panel, or gate opener—does that system support lithium battery replacement?
• [ ] Will the battery always be charged at temperatures above 0°C?
• [ ] Do you need standby power, deep cycle power, or engine-cranking power?

Important:

This is a deep cycle lithium battery. It is not designed as a starter battery for cars, motorcycles, boats, or other engines. Engine cranking requires very high pulse current. Do not use this battery in engine starting applications.

---

FAQ About 12V 7Ah LiFePO4 Battery

Can this 12V 7Ah LiFePO4 battery replace a UB1280 battery?

Yes, it can be used as a UB1280 replacement battery in many applications when the physical size, voltage range, F2 terminal type, maximum discharge current, and charging system are all compatible. The UB1280 is a standard 12V 7Ah SLA format used in alarm panels, UPS units, fish finders, and gate openers. If your system’s charger supports a 14.4V LiFePO4 profile and the dimensions match, this lithium replacement battery for UB1280 SLA battery is a valid upgrade.

Is this battery suitable for a fish finder?

Yes. This battery is a practical choice for fish finders, kayak fish finder systems, portable depth finders, and ice fishing electronics that run on compact 12V power. The lightweight design helps reduce total gear weight, and the flat discharge curve keeps the fish finder performing consistently through the session—not just the first hour.

Can I use it as an APC UPS replacement battery?

It may work in selected small UPS and APC UPS replacement battery projects. However, many UPS units use a lead-acid specific charging algorithm or run a battery health check based on internal resistance values. LiFePO4 batteries have different resistance characteristics than SLA and may trigger a battery fault on some UPS models. Always confirm charger voltage compatibility, standby charging behavior, terminal layout, and current requirements before installing in any UPS system.

What charger should I use?

Use a 12V LiFePO4 charger with a 14.4V charging profile. A 12V 3A LiFePO4 charger compatible battery setup is a straightforward and practical option for this battery size. Avoid lead-acid chargers with pulse repair, desulfation, AGM, or GEL-specific modes. These modes use charge patterns that are not suited to LiFePO4 cells.

Is it lighter than a sealed lead acid battery?

Yes. A 12V 7Ah LiFePO4 battery is significantly lighter than a comparable 12V 7Ah sealed lead acid battery. This is one of the primary practical reasons to make the switch, particularly for portable and outdoor applications where carry weight matters.

Does this battery have BMS protection?

Yes. This is a BMS protected 12V 7Ah LiFePO4 battery. The built-in Battery Management System protects against overcharge (high voltage cutoff), over-discharge (low voltage cutoff), short circuit, over-current, cell imbalance, and high temperature. The BMS is a critical component for safe long-term operation in any quality lithium battery.

Can it be used for camping and portable lighting?

Yes. This compact LiFePO4 battery is a solid choice for camping lights, portable LED lighting kits, outdoor electronics, small power boxes, and similar low-draw 12V applications. It is light enough to carry in a pack, easy to recharge at home between trips, and requires no maintenance between uses.
